AES3 digital audio over ATM networks
AL01 features
4 input ports and 4 output ports in 1U-high enclosure
sample rates up to 96 kHz
output ports individually synchronised to source
controlled via RS232 port or via a connection across the network
control program for Windows 95/98 supplied
easy to interface to user's own control and routing software
full ATM signalling stack for switched virtual circuit routing
configurable for operation over "permanent" virtual circuits
network connection over standard CAT3/CAT5 building wiring
Asynchronous Transfer Mode (ATM) is the most appropriate standard technology available now or in the foreseeable future for carrying live professional audio across public and private telecommunications networks. By using "native" ATM services instead of IP encapsulation, audio traffic benefits from
guaranteed throughput, and
minimum delays.

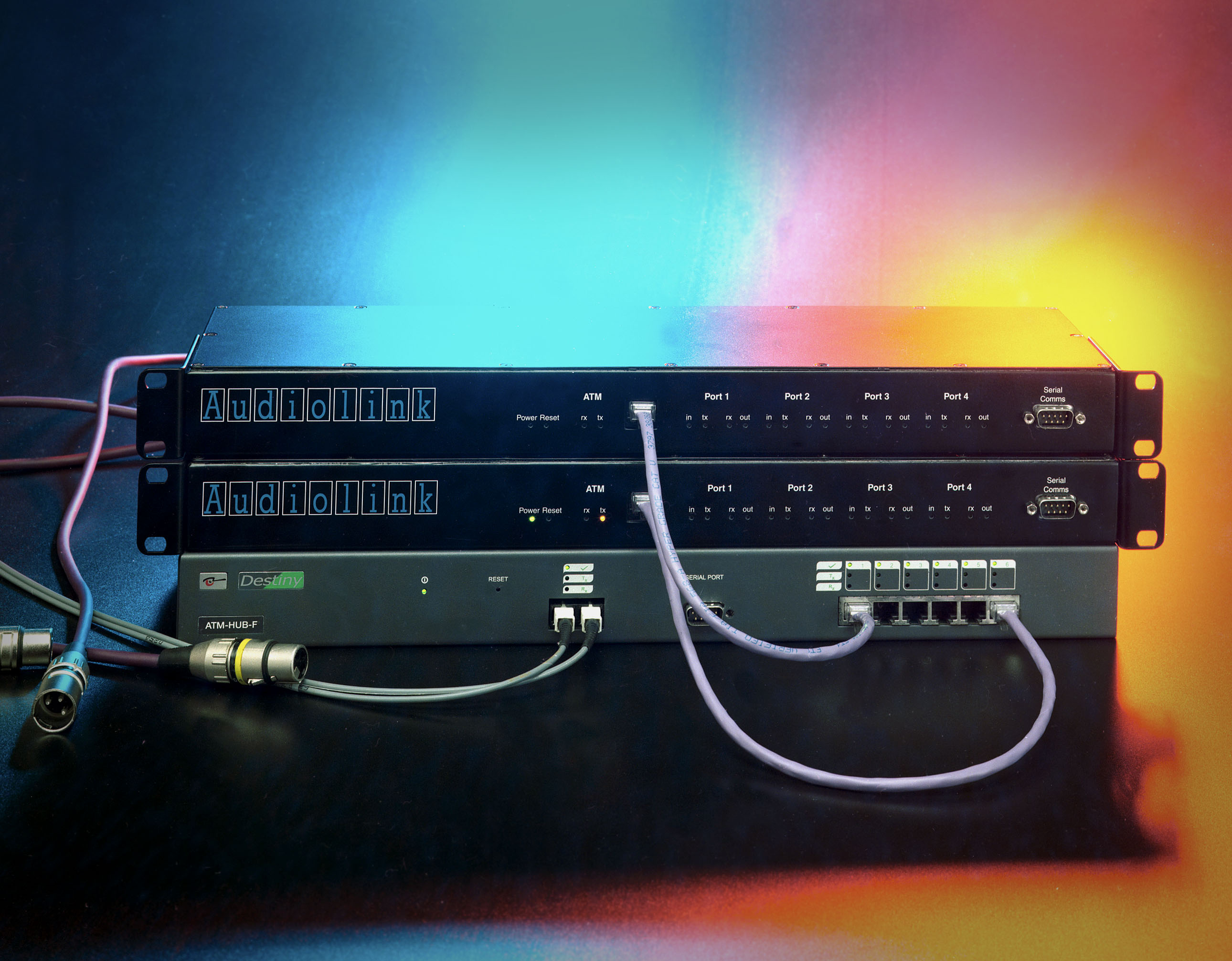

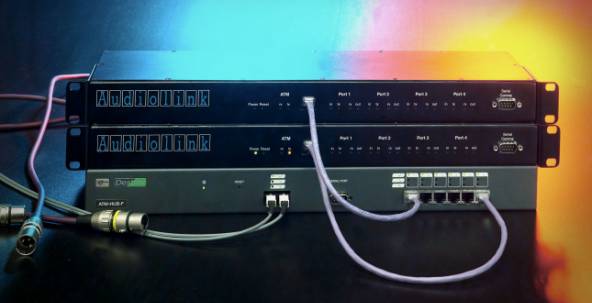

Audiolink units provide the connection between professional audio systems and the ATM network.
AL01 Specification
Mechanical
1U high 19" rackmount enclosure
Depth 150mm
Four AES3 input ports (back panel)
3-pin XLR connector
Sample rates: 96, 88.2, 64, 48, 44.1, 32, 24, and 22.05 kHz and these rates × 1000/1001
Configurable for autodetect or fixed sample rate
Four AES3 output ports (back panel)
3-pin XLR connector
Sample rates: 96, 88.2, 64, 48, 44.1, 32, 24, and 22.05 kHz and these rates × 1000/1001
Each port individually synchronised to its audio source; other synchronisation schemes available on request
Power inlet (back panel)
Fused & switched IEC connector
100-240V AC, 50/60Hz, <50W
RS232 port (front panel)
9-pin D-connector, pinout as PC comms port (RxD, TxD, DTR, CTS only)
Audiolink control protocol at 38,400 baud, 8 data bits + even parity
Configurable for "transparent" data for communication with local equipment
Other protocols available on request
ATM interface (front panel)
25 Mbit/s ATM UNI (RJ45 connector)
Indicators (front panel)
Power on; reset; ATM rx; ATM tx
For each input port: audio present on AES3 input; ATM cells being transmitted
For each output port: ATM cells being received; audio present on AES3 output
Audio format on ATM network
CBR service, "native ATM" format conformant to AES47
Input ports configurable for 24 or 24+8 bits per sample, mono or stereo
Output ports configured automatically at call setup
